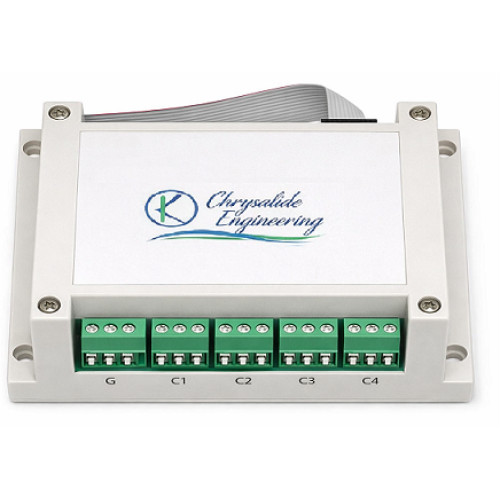

CLV003 Lab Tool
USB Programmable Measurement & Control Interface
OverviewThe CLV003 Lab Tool is a compact, USB-connected, programmable I/O and measurement platform designed for embedded systems development, testing, and validation. It integrates precision analog measurement, isolated digital I/O, and communication interfaces into a single device, allowing engineers to interact directly with real-world signals. This instrument is ideal for embedded hardware and software development engineers, electronics enthusiasts, and students in electrical engineering, electronics, and embedded systems..
|
Key Features
- 4 × true differential analog inputs (±32 V)
- 4 × precision millivolt inputs with programmable excitation
- 4 × isolated digital inputs (up to 32 V)
- 4 × isolated digital outputs (up to 32 V, 3 A)
- GPIO interface with I2C, SPI, UART
- USB-C interface for power, programming and communication
- Arduino-compatible programming environment
- Windows Software

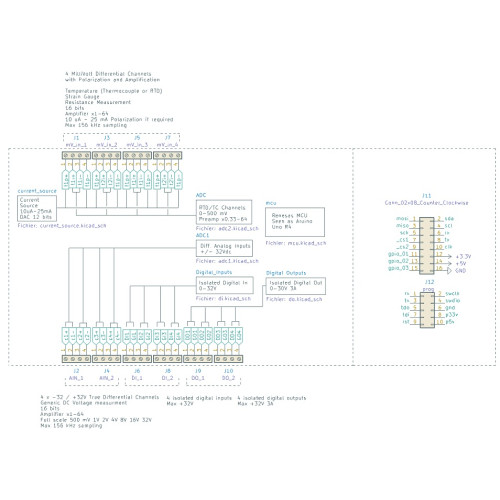

Analog Inputs (High Voltage)
| Channels | 4 (true differential) |
| Input Range | ±32 V |
| Resolution | 16 bits (~1 mV) |
| Gain | ×1 to ×64 |
| Full Scale | 0.5 V to 32 V |
| Sampling Rate | Up to 156 kHz |
Precision Low-Level Inputs
| Channels | 4 (differential) |
| Input Range | 0 – 500 mV |
| Resolution | 16 bits |
| Gain | ×1 to ×64 |
| Excitation | 10 µA to 25 mA (programmable) |
| Sampling Rate | Up to 156 kHz |
| Applications | RTD, Thermocouples, Strain Gauges, Resistance |
Digital Inputs
| Channels | 4 (isolated) |
| Voltage | Up to 32 V |
Digital Outputs
| Channels | 4 (isolated) |
| Type | Open-drain |
| Voltage | Up to 32 V |
| Current | Up to 3 A |
Connectivity & Programming
| USB | USB-C (power + communication) |
| GPIO Port | 16 pins (Gnd 3.3V 5V I2C SPI UART GPIO) |
| Programming | Arduino-compatible |
| MCU | Renesas RA4 (R4 Minima compatible) |
| Debug | Dedicated debug port |
Typical Applications
- Embedded system prototyping & testing
- Sensor characterization and testing
- Fault analysis and diagnostics
- Multi channel Voltage measurement and aquisition
- Milli-Ohm Meter
- Temperature Measurement
- Consolidated data aquisition
Available in Pre-Order Only.
For more informations, please contact me.
Multi Channel Analog & Digital Instrument
- Brand: Chrysalide Engineering
- Product Code: CLV003
- Availability: Pre-Order
-
94.80€
- Ex Tax: 79.00€
