Nunki EVK - CH32V003 RISC-V
Nunki EVK - CH32V003 RISC-V
  • favorite_border
  • compare_arrows

Nunki EVK - CH32V003 RISC-V


star_borderstar_borderstar_borderstar_borderstar_border
0 reviews
8.40€
Chrysalide Engineering
chat
remove_circle_outlineadd_circle_outline

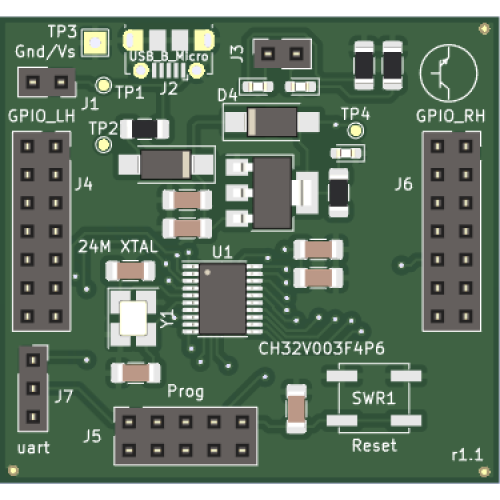

Electronic Development board with RISC-V CH32V003 F4P6 Microcontroller
32 bit RV32 EC core running at 48 MHz with built-in PLL
24 MHz Crystal
16k Flash
2k SRAM
Many peripherals including I2C, SPI, USART, Timers, Analog to Digital converters
20 pin GPIO
10 pin programmer port
6 pin supply port
USB port for power supply
2 free standing user LEDs
1 reset button
On-board 3.3V regulator

Github Source Code
